Solar Powered Lithium Battery AIS ATON With Remote Monitoring
Product Overviews:
This solar-powered AIS AtoN is crafted for buoys and fixed structures, delivering reliable performance in remote locations.
Equipped with a high-quality AIS transponder, the unit is encased in a durable and rugged housing that ensures protection in tough environments.
It features four solar panels and a GPS module to maximize energy storage, providing excellent efficiency for long-term, sustainable operation. The AIS Beacon Type 3 also supports the integration of external systems like LED Flashers, Lantern changers, and offers remote monitoring, providing added flexibility for monitoring and control.
Features and benefits:
- Powered by solar energy for ease of setup and reduced maintenance needs: Harnessing renewable energy, this unit reduces the complexity of installation and the ongoing operational costs, especially in remote or difficult-to-reach areas.
Fiberglass construction with IP68 waterproof rating: Ensures resilience against the toughest weather conditions, safeguarding long-term performance.
GPS integration for accurate location tracking: The built-in GPS system provides enhanced navigation precision and allows for real-time location monitoring.
Sophisticated battery management with high-capacity modules: Multiple battery packs and high-capacity options ensure flexibility in power management and extend operational life.
Compatibility with message types NO.6 and NO.21 for improved data exchange: This ensures efficient communication between devices, optimizing system functionality.
30 days of uninterrupted battery performance: The unit offers reliable operation, reducing downtime and minimizing maintenance intervals.
Ability to generate virtual and synthetic AtoN signals: The system allows for the creation of virtual navigational aids, improving navigational reliability and flexibility.
Specifications:
| Genaral Spec | Body material | Fiberglass |
| Bracket Material | S316 tainless steel aluminum |
| Operating temperature range | -35°C to +°60C |
| IP Rating | IP68 |
| Life time | 10 years |
| Weight | 2.5KGS |
| AIS Spec | Operation frequency | 161.975MHz, 162.025MHz |
| Modulation | GMSK/FSK |
| Frequency error | ±0.5kHz |
| Transmission power | ≤12.5W |
| Average power consumption | ≤0.05W |
| Message format Messages | No. 21 and NO.6,message periods are adjustable |
| Operating type | Type three (SOTDMA, autonomous working mode) |
| AIS antenna | Included, high gain omnidirectional antenna |
| Battery Spec | Battery type | Lithium |
| Battery nominal voltage | 7.4V |
| Battery autonomy | 30 Days |
| Battery capacity: | 7.4V/10.4AH |
| Operating Voltage | DC 5.5-8.1V |
| Recharging Voltage | 8.4V |
| Solar Spec | Solar module type | Mono crystalline Silicon |
| Solar output | 4X1.8W |

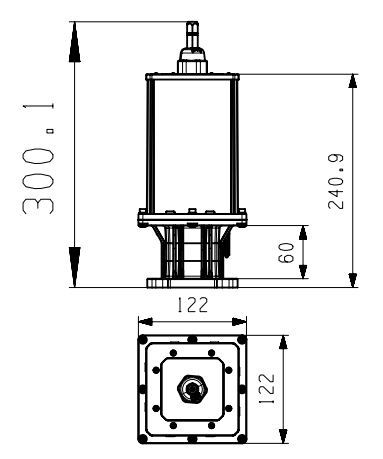

Dimension Drawing:
Applications:
Buoy,beacon,bridge,light tower and other fixed structures
Quality Control:
ISO9001, 14001, 45001
About Us:
Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.
We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.
Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
